Manual Interlocking Bottom

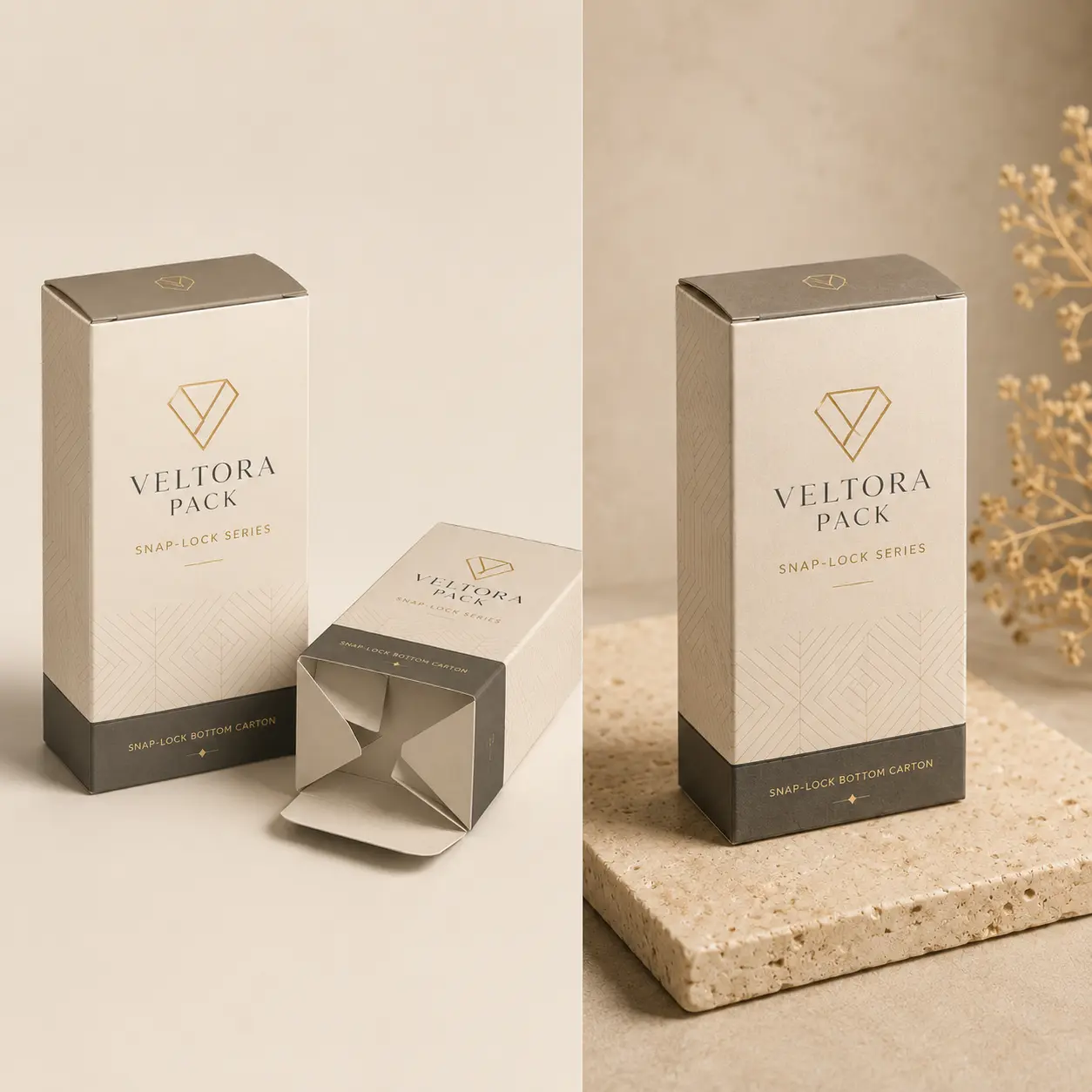

Snap-Lock Bottom Carton
Secure Interlocking Bottom, Easy Manual Assembly & Custom Retail Packaging
Snap-Lock Bottom Cartons use a set of interlocking bottom flaps that are manually folded into position to create a secure and stable base without requiring a pre-glued automatic bottom.
Also commonly known as a 1-2-3 Bottom Carton, the structure uses multiple bottom panels that are folded in sequence until the base locks securely into position.
Why Choose Snap-Lock Bottom Cartons?
Snap-Lock Bottom Cartons combine secure bottom support, straightforward manual assembly and flexible customization for retail packaging projects that do not require a pre-glued automatic bottom.
Secure Bottom Support
Interlocking bottom panels create a stable base for a wide range of retail products.
Simple Manual Assembly
The bottom can be assembled manually through a straightforward sequential folding process without specialized forming equipment.
No Pre-Glued Auto Bottom
The locking bottom is formed through interlocking panels rather than a pre-glued automatic base.
Cost-Effective Structure
Snap-Lock Bottom Cartons can provide a practical alternative when stronger bottom support is required without moving to an auto-lock construction.
Excellent Printing Surface
Large exterior panels provide ample space for branding, graphics, instructions and product information.
Fully Customizable
Dimensions, paperboard, printing, coatings, windows and inserts can be customized around the product.
Snap-Lock Bottom Cartons can be a suitable choice when secure interlocking bottom support is required without the pre-glued automatic base used in Auto-Lock Bottom Cartons.
Product Specifications
Snap-Lock Bottom Cartons can be customized by size, paperboard, printing, finishing and internal packaging requirements, with a manually assembled interlocking bottom designed to provide secure support for a wide range of retail products.
| Specification | Option |
|---|---|
| Style | Snap-Lock Bottom Carton SLB |
| Alternative Name | 1-2-3 Bottom / Lock Bottom |
| Size | Fully Customizable |
| Paperboard | SBS / C1S / FBB / Kraft |
| Paper Weight | 300 / 350 / 400 / 450 / 500 GSM |
| Printing | CMYK / PMS / Spot Color |
| Printing Method | Offset / Digital |
| Coating | Matte / Gloss / Aqueous |
| Special Finish | Foil / Emboss / Deboss / Spot UV |
| Window | PET / PVC / PLA — Optional |
| Insert | Paper / EVA / Foam / Molded Pulp |
| Bottom | Manual Interlocking Snap-Lock Key Structure |
| Packing | Flat Packed |
| MOQ | From 500 pcs |
| Sample | Blank / Digital / Production Sample |
Unlike a pre-glued Auto-Lock Bottom, the Snap-Lock Bottom is formed by manually folding and interlocking the bottom panels. Final paperboard weight and structural design should be selected according to carton dimensions, packed product weight and packing requirements.
Manual Interlocking Bottom
Pre-Glued Automatic Bottom
Material Options
Material selection should consider carton dimensions, packed product weight, required bottom strength and printing requirements.
SBS Paperboard
Smooth printing surface and clean appearance for premium retail packaging that requires detailed graphics and consistent color.
Folding Box Board
Good rigidity and versatile converting performance for a wide range of folding carton applications and retail products.
Kraft Paper
Natural paper appearance with a distinctive visual character for brands that prefer a more understated or kraft-style presentation.
E-Flute Corrugated
Additional rigidity for cartons carrying products that require greater structural support than standard folding paperboard.
Final paperboard recommendations should consider carton dimensions, product weight, required snap-lock bottom performance, printing coverage, finishing requirements and packing conditions.
Printing & Finishing Options
Snap-Lock Bottom Cartons can be customized with full-color printing, protective coatings and decorative finishes to support retail branding, product information and premium shelf presentation.
Printing

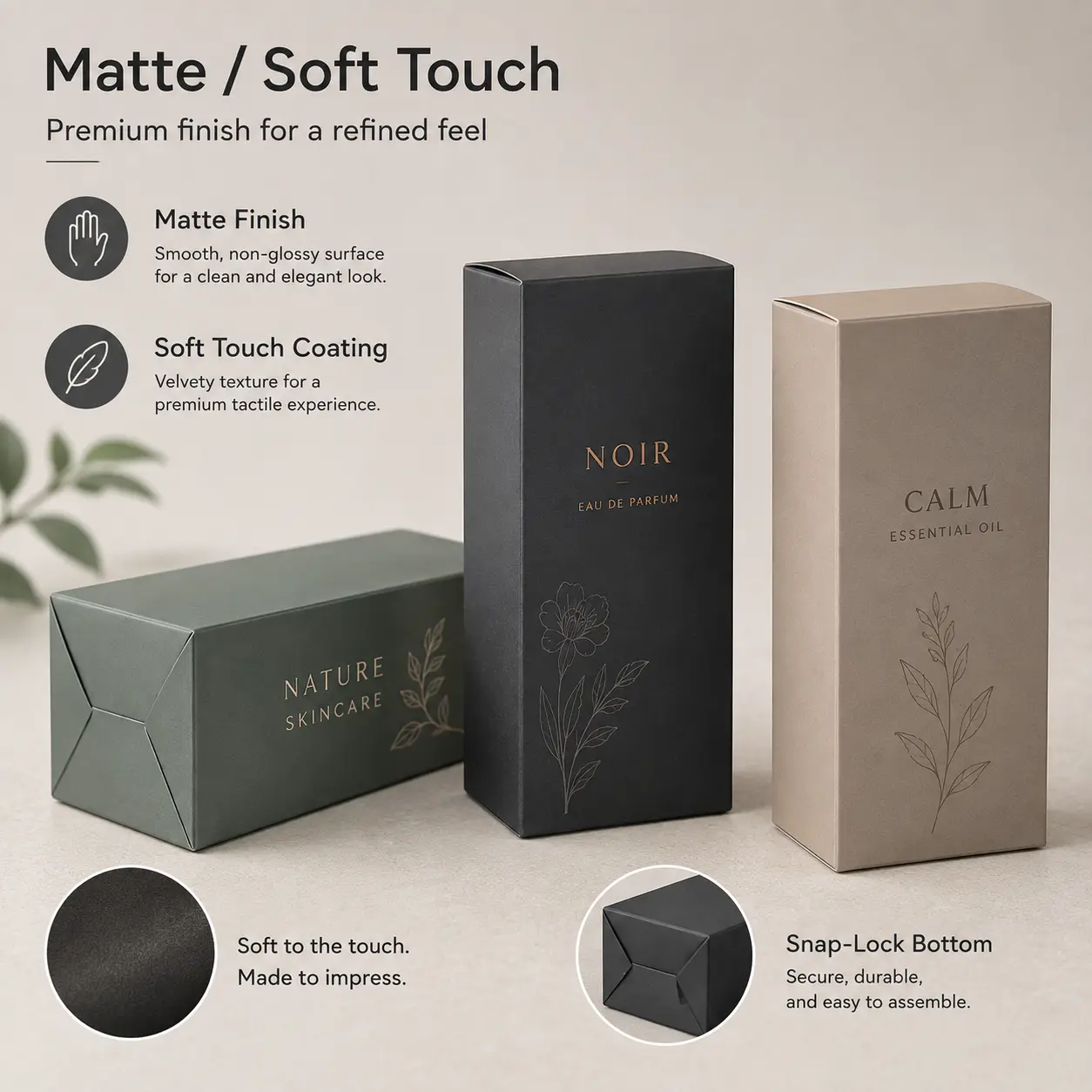

Coating

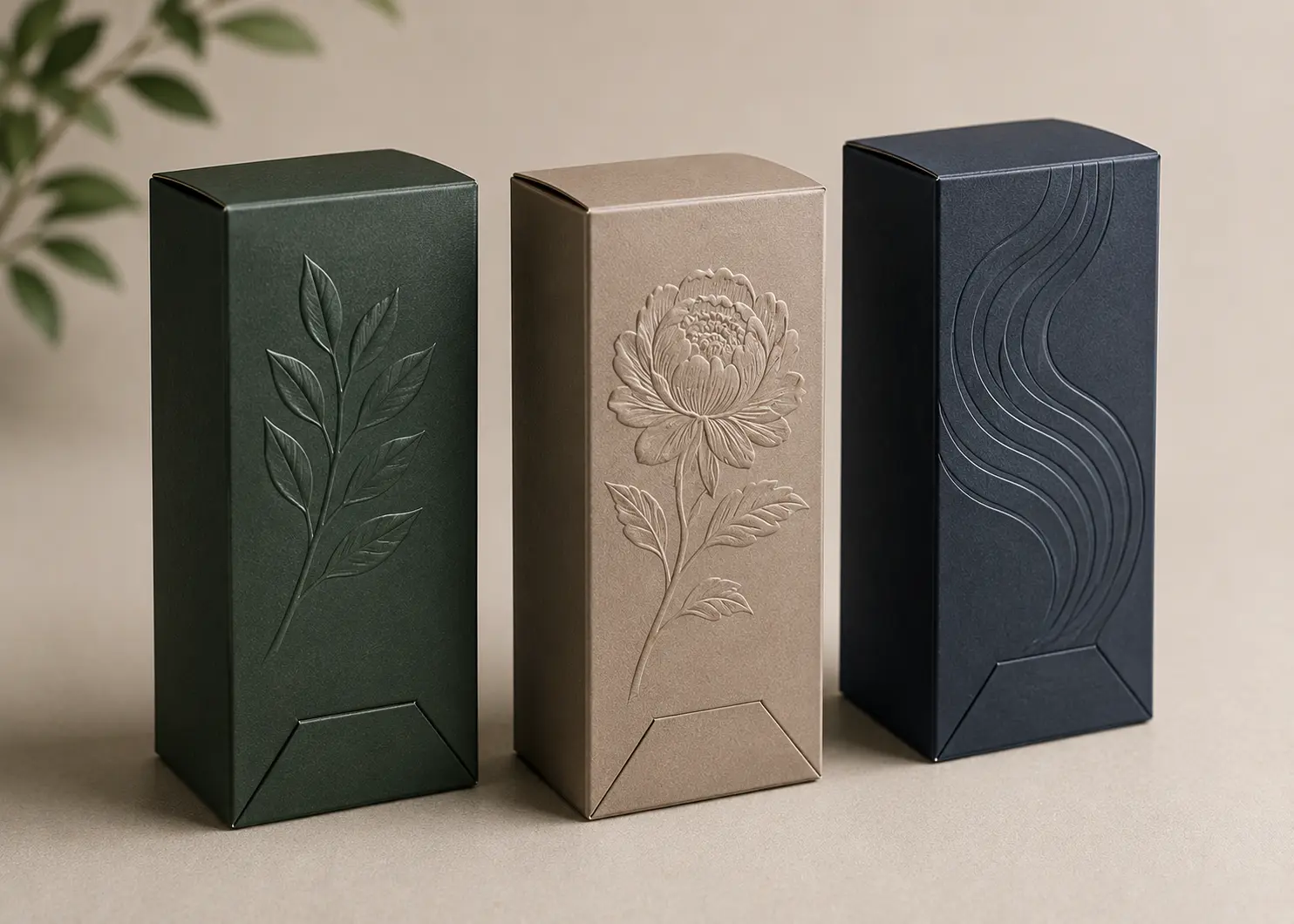

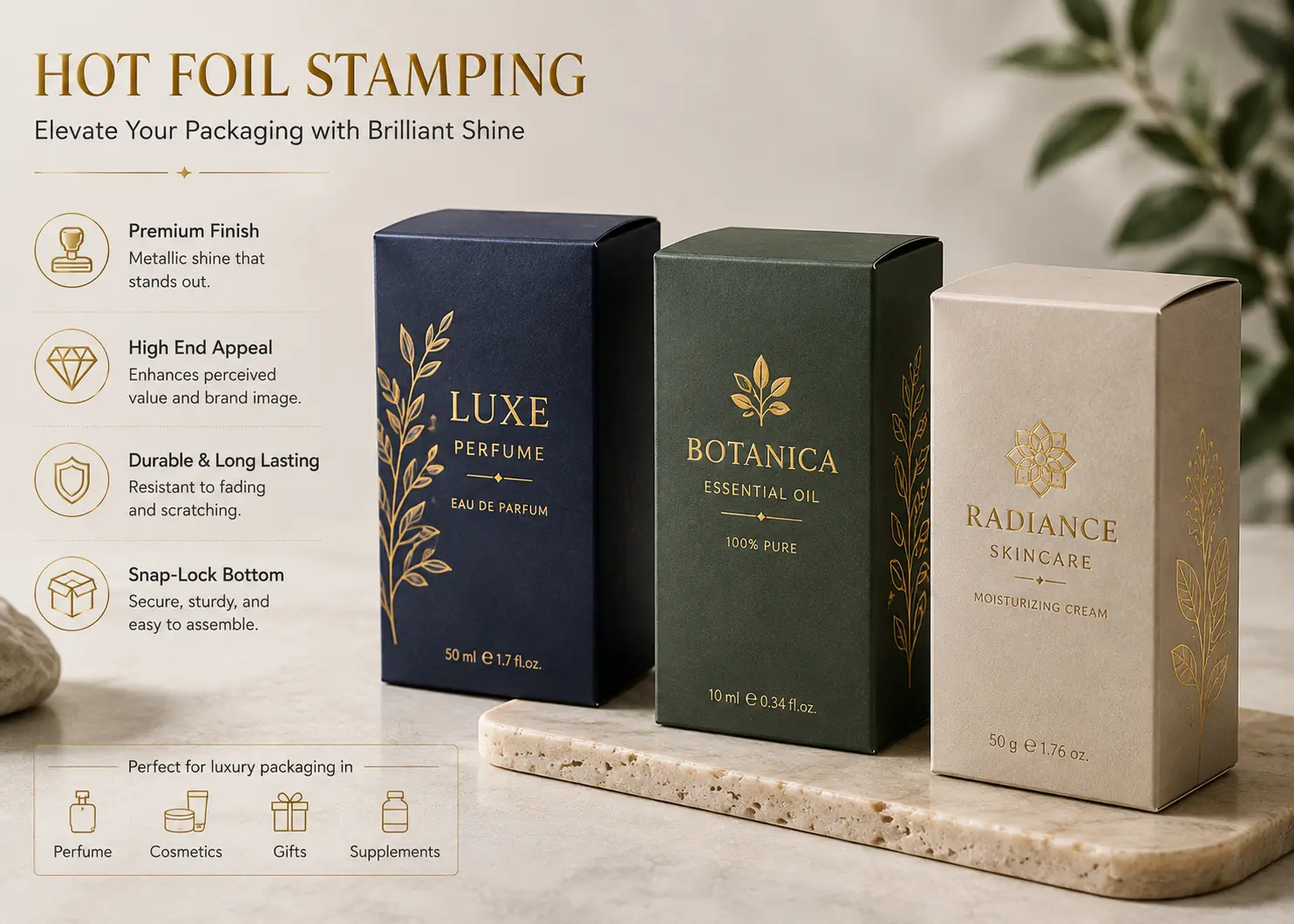

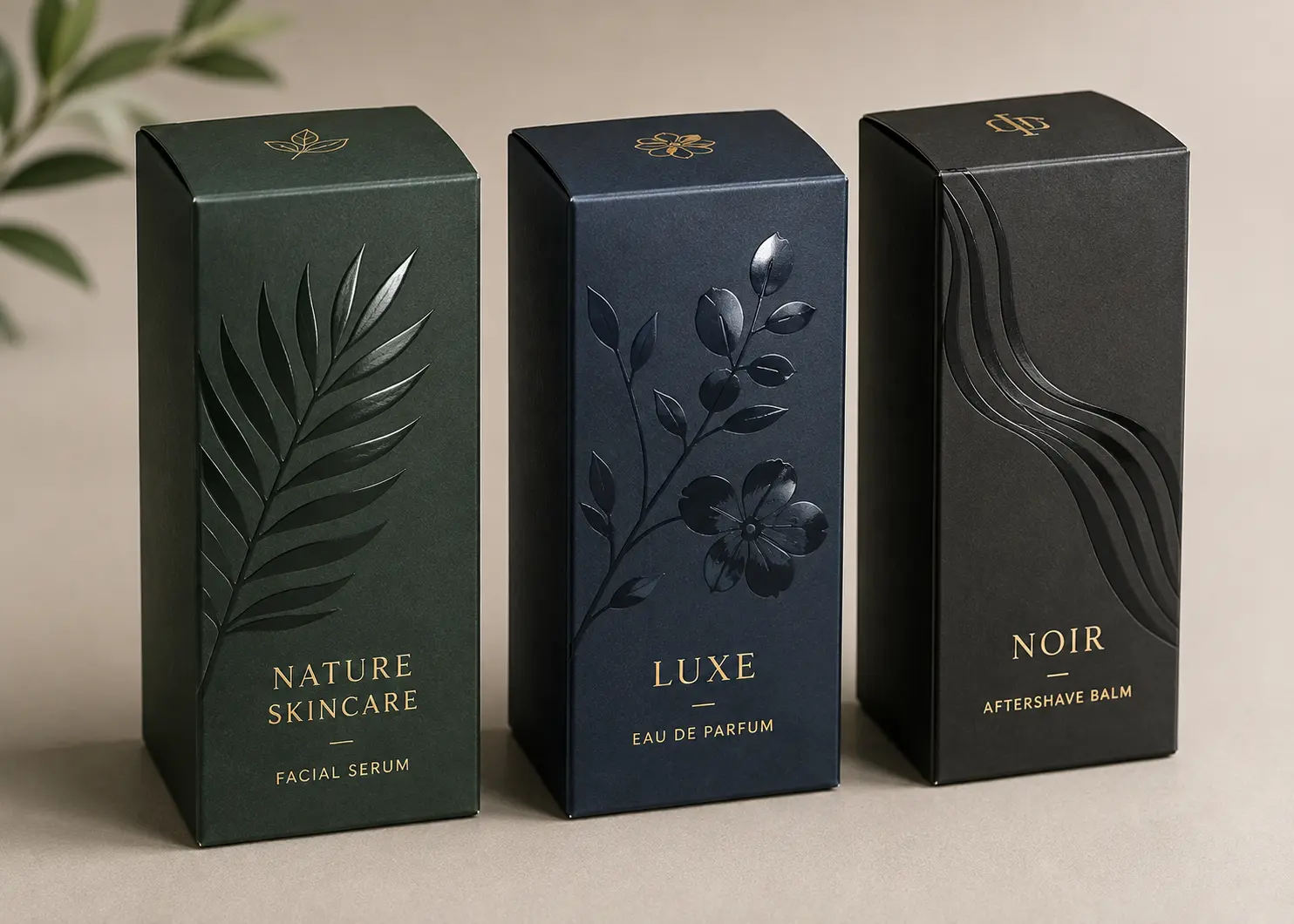

Premium Finishes
Final recommendations can be confirmed according to paperboard type, artwork coverage, color requirements, desired surface effect, structural design and production quantity.
Custom Size
Straight Tuck End Cartons can be manufactured around your exact product dimensions. Provide the finished inside dimensions as Length × Width × Height, together with your quantity, material and printing requirements.
Length × Width × Height
Enter your carton dimensions in the order Length × Width × Height. The L / W / H positions are shown directly on the dimension image above.
Configure Your Carton
Enter your basic requirements below to request a custom Straight Tuck End Carton quotation.
Common Applications
Snap-Lock Bottom Cartons are suitable for a wide range of retail products where secure bottom support, practical manual assembly and flexible printed packaging are important.
01

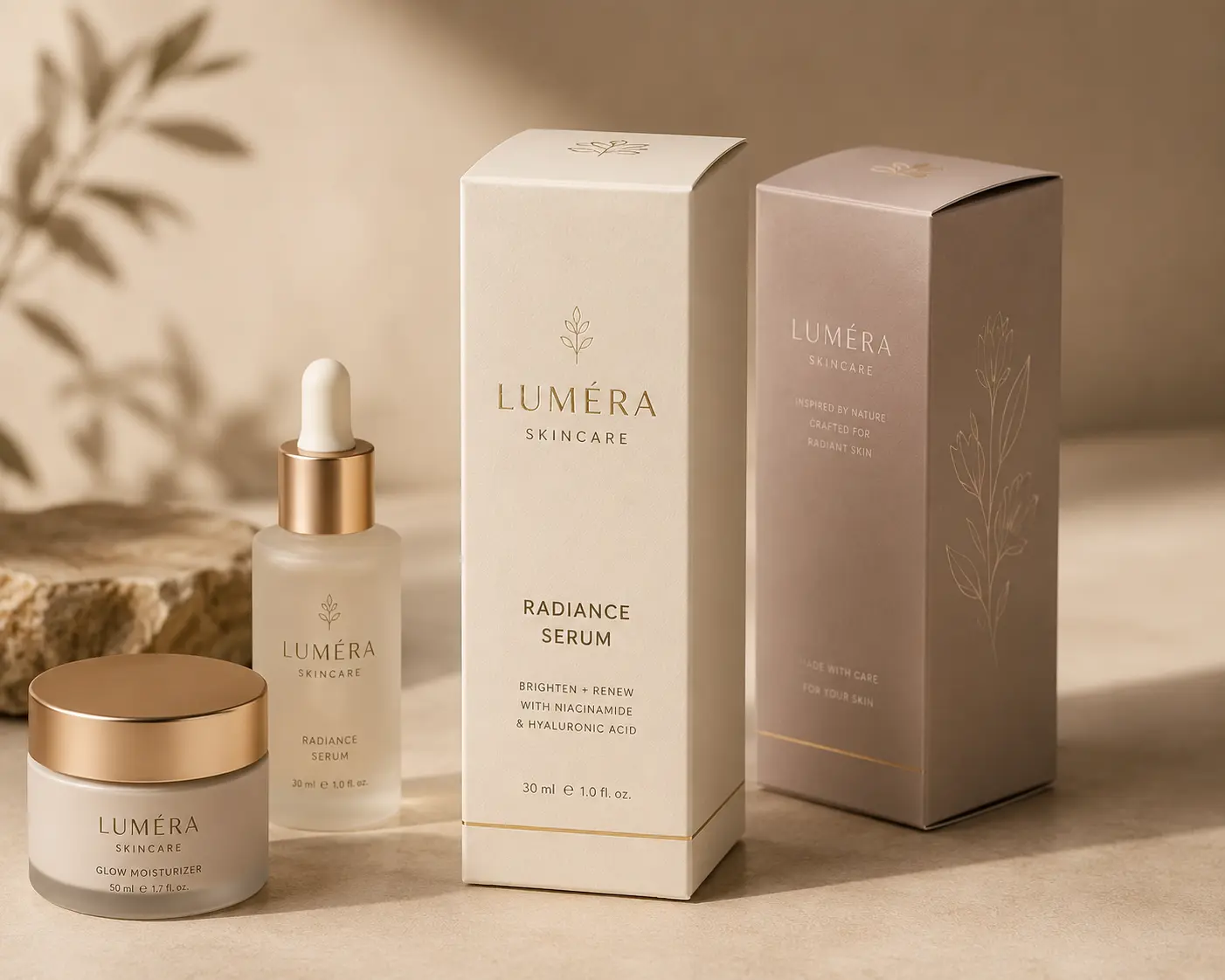

Cosmetics
Perfume / Cream / Skincare
02

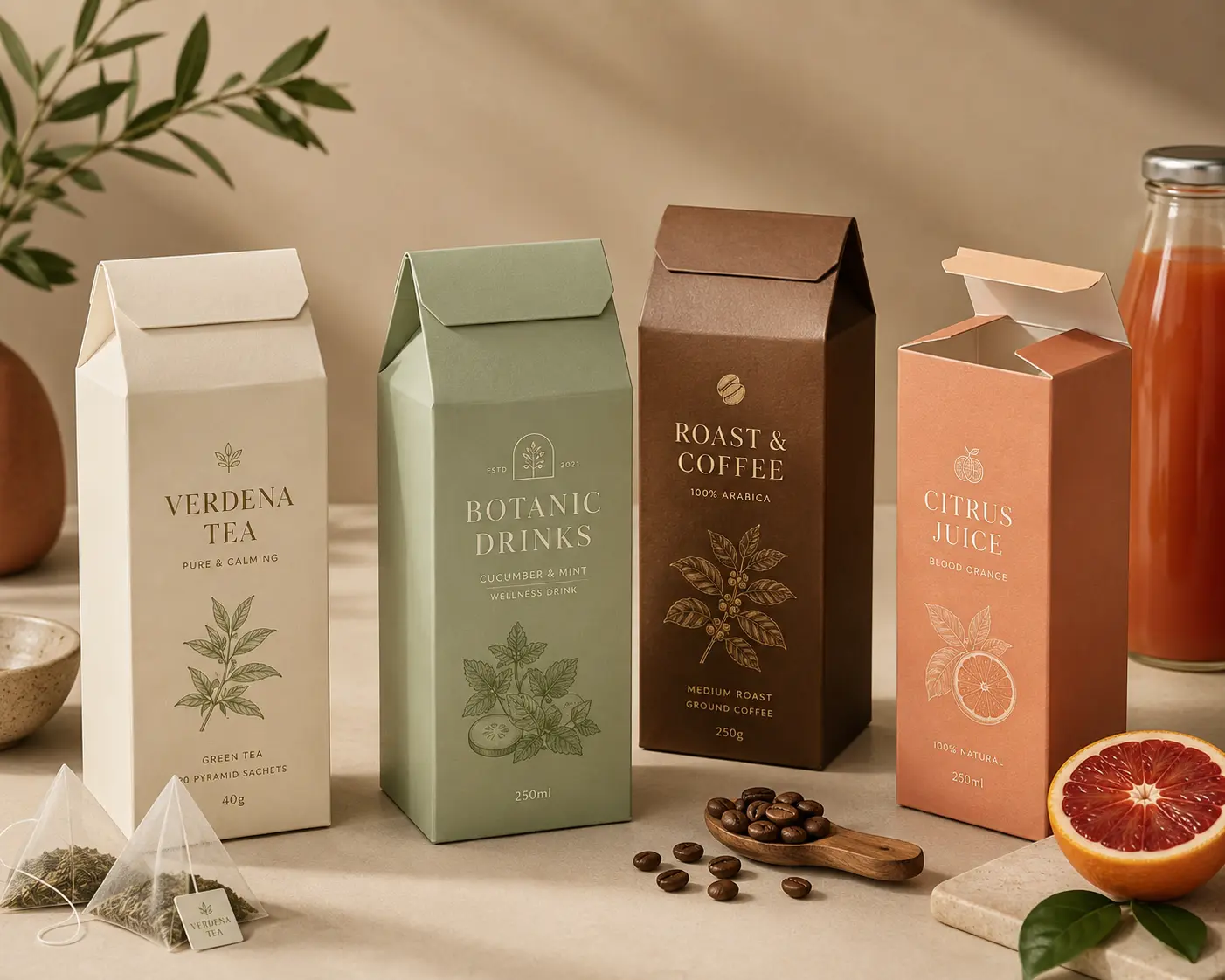

Food & Beverage
Tea / Coffee / Chocolate
03

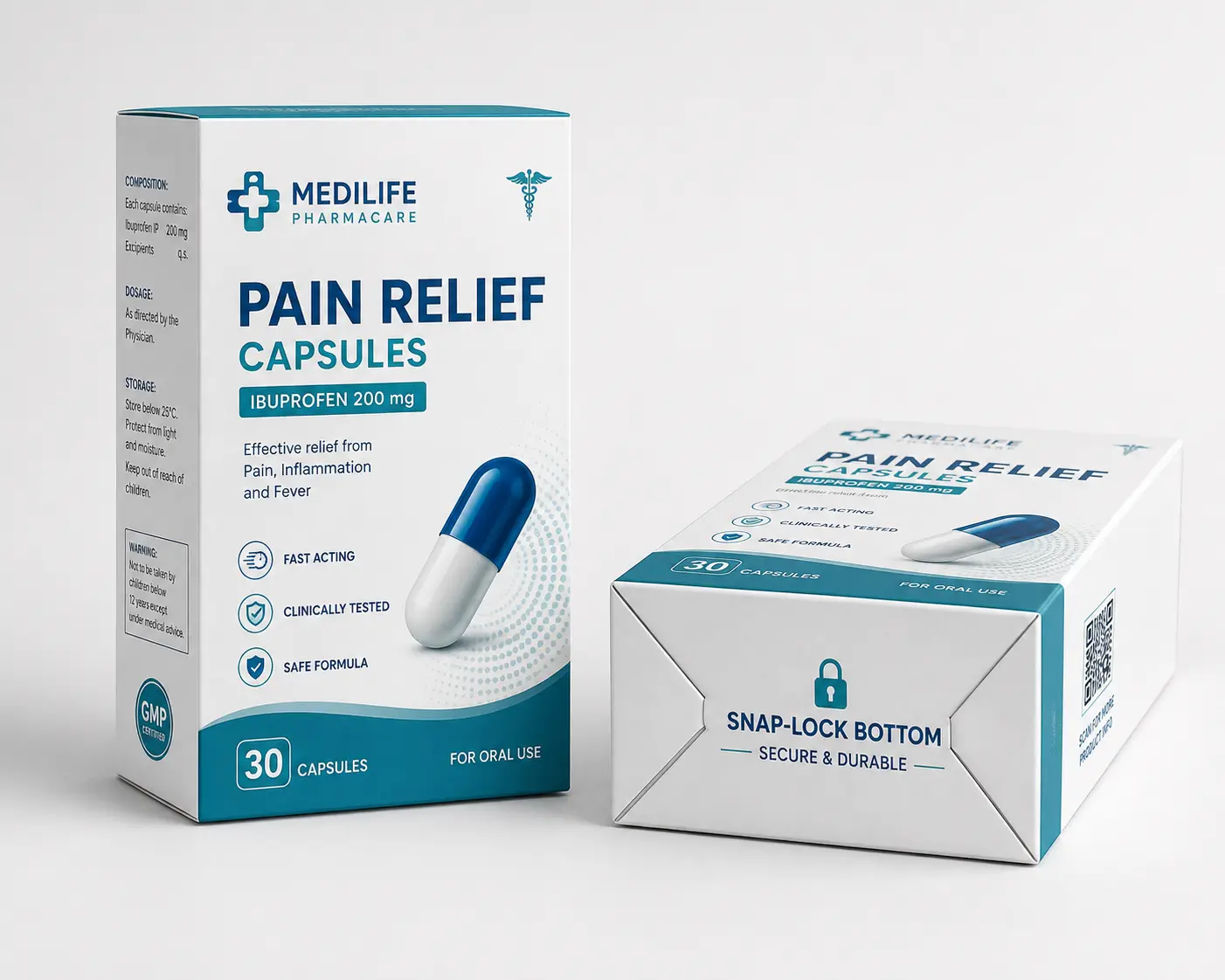

Pharmaceutical
Medicine / Supplements
04

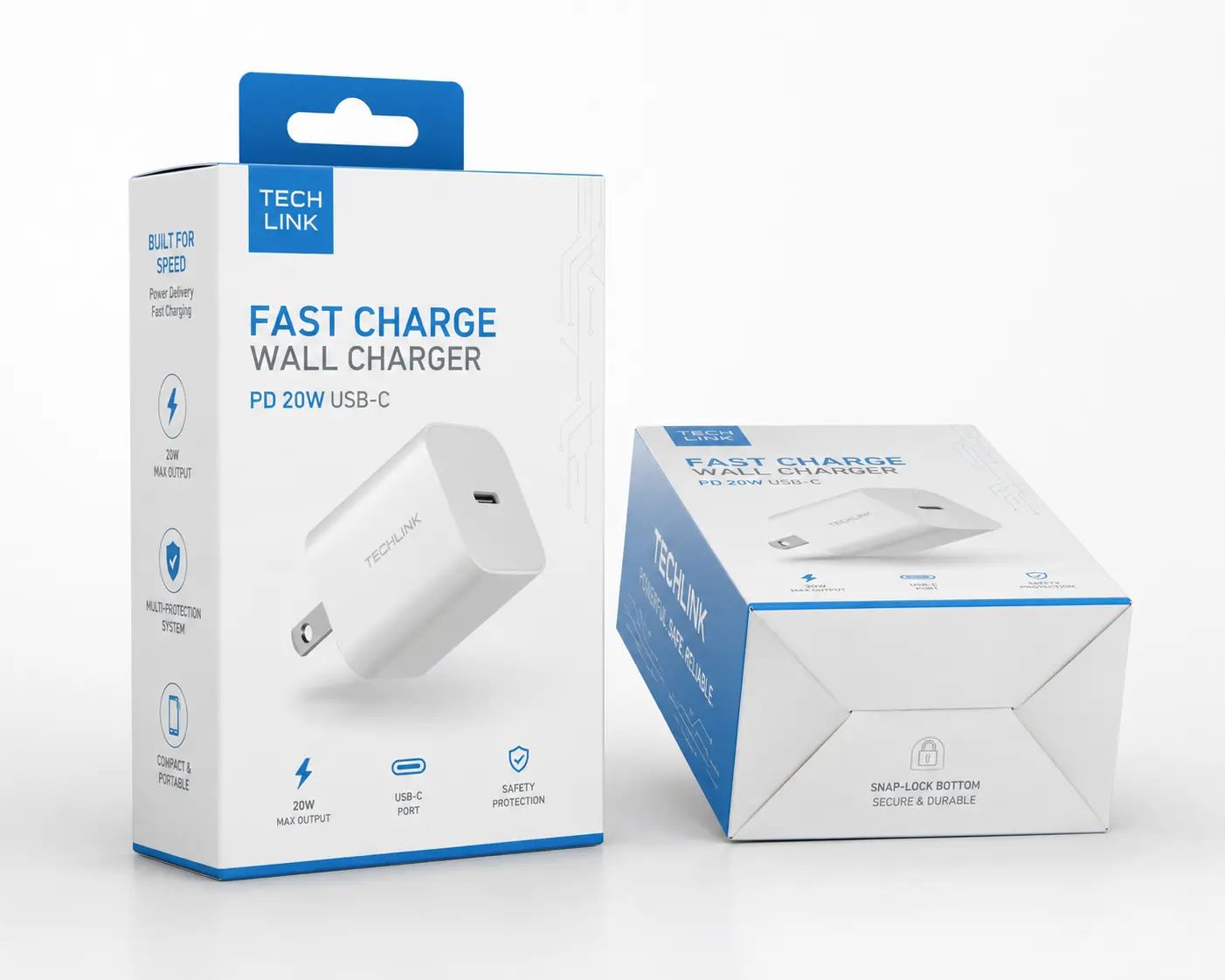

Electronics
Accessories / Chargers / Small Devices
05

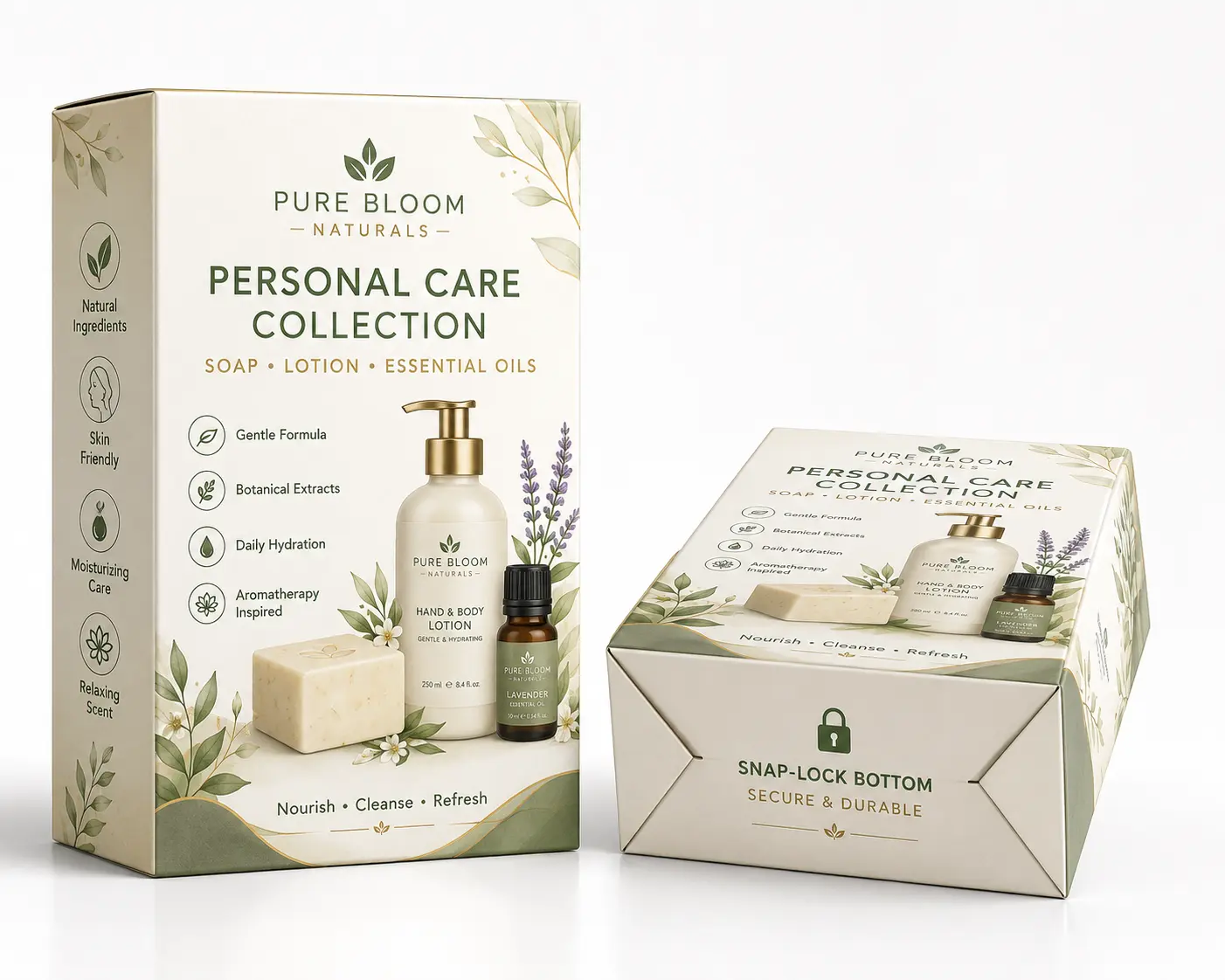

Personal Care
Soap / Lotion / Essential Oils
06

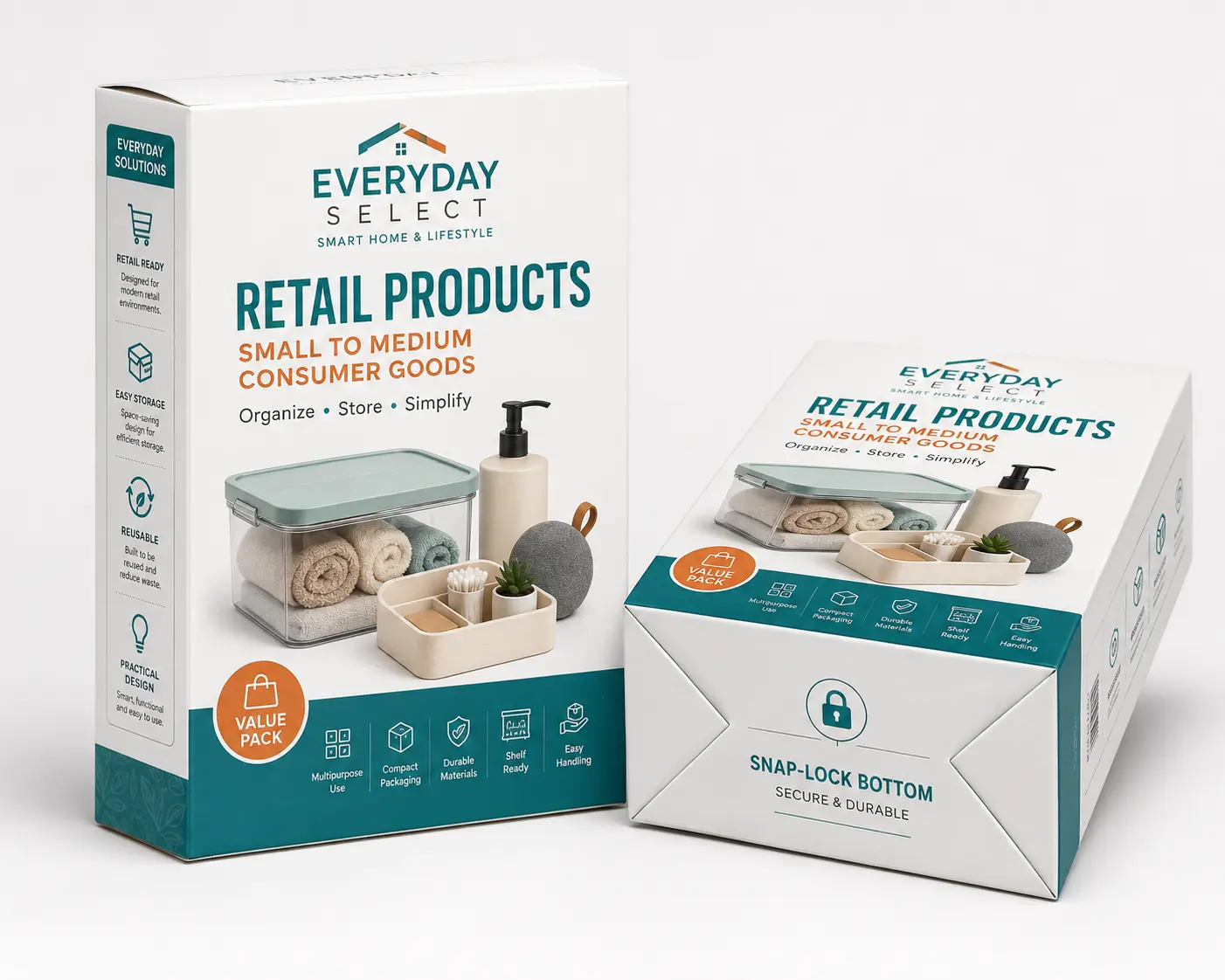

Retail Products
Small to Medium Consumer Goods
Snap-Lock Bottom Cartons can be a suitable choice when dependable bottom support and manual carton assembly are required without the pre-glued automatic base used in Auto-Lock Bottom Cartons.
How to Order
From initial dimensions to mass production, our custom Reverse Tuck End Carton process follows five clear steps to confirm specifications, artwork, structure and production quality.
-
01Project Details
Submit Size & Quantity
Send your carton dimensions, order quantity and basic material or printing requirements.
-
02Pricing
Receive Quote
We review the specification and prepare pricing based on size, material, printing, finishing and quantity.
-
03Structure
Confirm Dieline
Review and approve the carton dieline before final artwork and sampling proceed.
-
04Pre-Production
Approve Sample
Check the carton structure, dimensions, print appearance and finishing before mass production.
-
05Production
Mass Production
Approved specifications move into printing, finishing, die-cutting, folding, quality inspection and packing.
Quality Assurance
Snap-Lock Bottom Cartons can be checked throughout production for material consistency, printing accuracy, die-cutting quality, folding performance and proper interlocking bottom fit.
Material Inspection
Paperboard grade, thickness, surface condition and material consistency can be checked before printing and converting.
Color & Print Control
Printed colors, registration, artwork placement and visible print defects can be reviewed against approved production requirements.
Die-Cutting Accuracy
Cut lines, crease lines, panel dimensions and locking flap geometry can be checked to support consistent carton assembly.
Folding & Gluing Inspection
Folding lines, side-seam gluing and carton alignment can be inspected to support reliable forming and packing performance.
Snap-Lock Fit Inspection
The interlocking bottom panels can be checked for die-cut accuracy, folding alignment, locking engagement and assembled bottom performance.
Final Packing Inspection
Finished cartons can be reviewed for appearance, quantity, packing method and shipping preparation before final dispatch.
Each production batch can be checked for material consistency, printing quality, dimensional accuracy, snap-lock fit, folding performance and final packing requirements.
Snap-Lock Bottom vs Auto-Lock Bottom
Both structures provide secure bottom support, but they differ mainly in how the base is formed. Snap-Lock Bottom Cartons require manual interlocking of the bottom flaps, while Auto-Lock Bottom Cartons use a pre-glued base that forms as the carton is opened.
Snap-Lock Bottom
Bottom panels are manually folded in sequence until the final flap interlocks with the other panels.
Auto-Lock Bottom
The pre-glued bottom structure moves into position and forms as the folded carton is opened.
| Comparison | SLB Snap-Lock Bottom | ALB Auto-Lock Bottom |
|---|---|---|
| Bottom Structure | Interlocking Flaps | Pre-Glued Interlocking Base |
| Assembly | Manual 1-2-3 Folding | Opens Automatically |
| Bottom Setup | Multiple Folding Steps | Single Opening Motion |
| Pre-Glued Bottom | No | Yes |
| Packing Speed | Good | Faster |
| Bottom Support | Strong | Strong |
| Flat Packed | Yes | Yes |
| Cost | Often Lower | Often Higher |
| Best For | Manual Packing | Repeated / Faster Packing |
Manual Packing & Structure Balance
Snap-Lock Bottom Cartons are often preferred when secure bottom support, simple manual assembly and cost-effective carton construction are priorities.
Faster Setup & Repeated Packing
Auto-Lock Bottom Cartons are often preferred when faster setup and efficient repeated packing are priorities.
The better option depends on carton size, packed product weight, required packing speed, labor process, order quantity and target packaging cost. Both structures can provide reliable bottom support when properly designed for the application.
Snap-Lock Bottom Carton FAQ
Find answers about Snap-Lock Bottom Carton structure, sizing, materials, product suitability, customization and sampling.
01 What is the difference between Snap-Lock Bottom and Auto-Lock Bottom?
The main difference is how the bottom is assembled. A Snap-Lock Bottom Carton uses interlocking bottom flaps that are manually folded into place, while an Auto-Lock Bottom Carton uses a pre-glued bottom structure that automatically forms when the carton is opened.
Snap-Lock Bottom Cartons are therefore often suited to manual packing operations where secure bottom support and a practical carton structure are priorities. Auto-Lock Bottom Cartons are generally preferred when faster setup and repeated packing efficiency are more important.
02 Is a Snap-Lock Bottom the same as a 1-2-3 Bottom?
Yes. Snap-Lock Bottom Cartons are commonly referred to as 1-2-3 Bottom Cartons because the interlocking bottom is assembled through a sequence of manual folding steps that lock the base into position.
The terms Snap-Lock Bottom, 1-2-3 Bottom and Lock Bottom may be used to describe this general manually interlocking bottom style.
03 Can I customize the Snap-Lock Bottom Carton size?
Yes. Snap-Lock Bottom Cartons can be manufactured to custom dimensions based on your product size, packed weight and packing requirements.
For quotation and dieline preparation, provide the finished carton dimensions in Length × Width × Height format together with the approximate product weight and required quantity.
04 How does a Snap-Lock Bottom Carton work?
A Snap-Lock Bottom Carton uses multiple bottom flaps that are manually folded in sequence. The panels overlap and interlock, and the final flap helps secure the assembled base in position.
Unlike an Auto-Lock Bottom Carton, the bottom does not automatically form when the carton is opened and normally requires manual assembly before the product is packed.
05 Is a Snap-Lock Bottom suitable for heavier products?
Snap-Lock Bottom Cartons can provide stronger bottom support than simple tuck-bottom structures and may be suitable for products with moderate packed weight.
Actual load performance depends on carton dimensions, paperboard grade, bottom geometry and product weight. For heavier products, thicker paperboard, reinforced material or another bottom construction may be recommended after structural evaluation.
06 What paperboard do you recommend?
SBS and Folding Box Board are commonly suitable for printed Snap-Lock Bottom Cartons because they provide good printability and structural performance. Kraft paperboard can be selected for a natural appearance, while E-Flute may be considered when additional rigidity is required.
The appropriate material and paper weight depend on carton size, packed product weight, required bottom strength, printing and finishing requirements.
07 Can you add a window or custom insert?
Yes. A die-cut window can be added to the front or side panel when the carton structure and artwork layout allow it. Window film options may include PET, PVC or PLA depending on project requirements.
Custom inserts can also be designed using paperboard, EVA, foam or molded pulp to help position, separate or protect the product inside the carton.
08 Can I get a sample before mass production?
Yes. Depending on the project, sample options can include a blank structural sample, digitally printed sample or production-standard sample.
Sampling allows you to review carton dimensions, product fit, snap-lock bottom engagement, artwork positioning and finishing requirements before mass production.
Create Your Custom Snap-Lock Bottom Carton
Tell us your box size, quantity and printing requirements. Our packaging team will prepare a custom quotation and dieline for your project.
Send Your Requirements
Include your preferred carton size, order quantity, material, printing and finishing requirements for a more accurate quotation.
